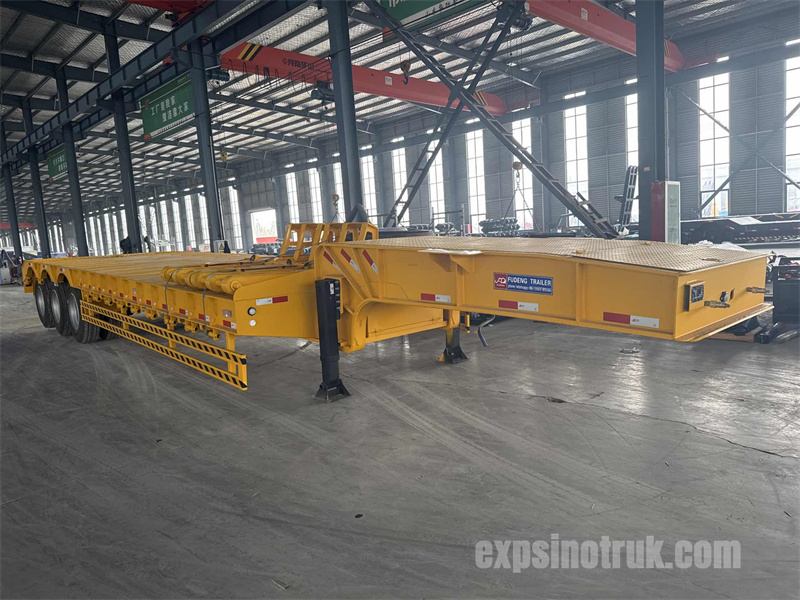

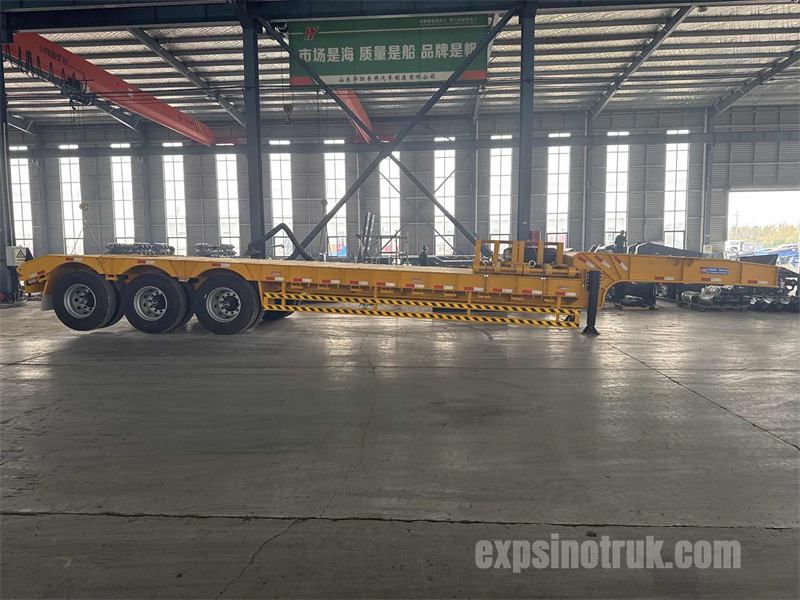

3 Axle Lowboy semi Trailer

Three-axle lowboy trailers boast exceptional load-bearing capacity and flexible adaptability, making them indispensable transportation partners in engineering construction.

Fudeng's three-axle mechanically suspended lowboy trailers further optimize structural design and functional configuration, providing a cost-effective solution for heavy equipment transportation through the robust support of mechanical suspension and convenient loading and unloading via mechanical ladders.

Chassis and Materials:

The chassis is constructed from high-strength steel, employing a stepped longitudinal beam and through-beam structural design to achieve lightweighting while maintaining overall rigidity. The chassis undergoes shot peening and rust prevention treatments, enabling it to withstand torsion and bumps during heavy-duty operations.

The low loading platform design further lowers the center of gravity, enhancing stability during transport.

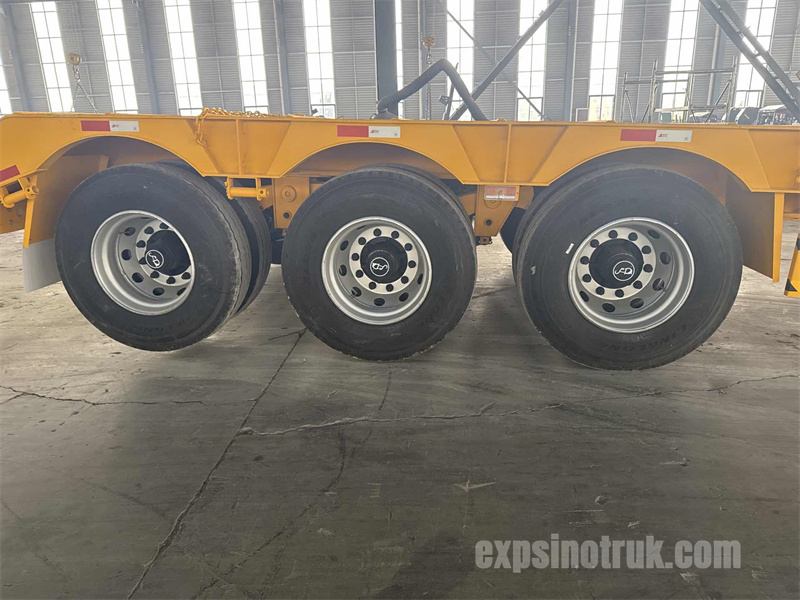

Suspension and Axles:

The vehicle is equipped with a three-axle mechanical suspension, which uses balance weight technology to evenly distribute the force between the front and rear axles, effectively dispersing load impacts.

This suspension structure is simple, durable, and has low maintenance costs, making it ideal for frequent heavy-load conditions.

The axles are configured for heavy-duty use, with excellent load-bearing capacity per axle. Combined with a dual-axle layout, this ensures stable driving under complex road conditions.

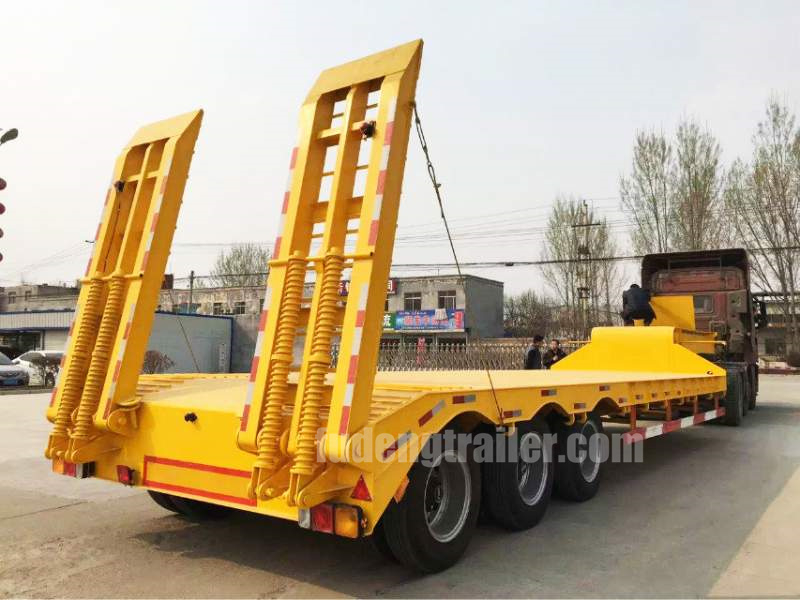

Ladder and Loading/Unloading Design

The mechanical ladder is one of the highlights of this semi-trailer. The ladder surface is covered with anti-slip steel plates or diamond-patterned plates to effectively prevent the equipment from slipping.

The ladder is connected to the loading platform by a hinge, which allows for quick deployment and retraction, greatly improving on-site operation efficiency.

Load Capacity and Stability:

The optimized design of the low-profile cargo platform not only facilitates loading and unloading but also significantly lowers the vehicle's center of gravity. Combined with the three-axle mechanical suspension's balancing system, it maintains cargo stability even on rough terrain, reducing the risk of swaying.

Safety and Protection:

The vehicle is equipped with a WABCO braking system and a reliable electrical system to ensure safe driving at night and in inclement weather.

The loading platform is equipped with rope tensioners, cast iron rope hooks, and other loading securing devices to ensure the safe and secure transport of heavy equipment over long distances. Container locks are also available as an option if needed.

This semi-trailer is widely applicable for transporting non-detachable goods such as mining machinery, construction equipment, and large steel products. Users can customize the cargo platform size, ladder specifications, and additional functions (such as toolboxes) to perfectly suit specialized transport needs.
