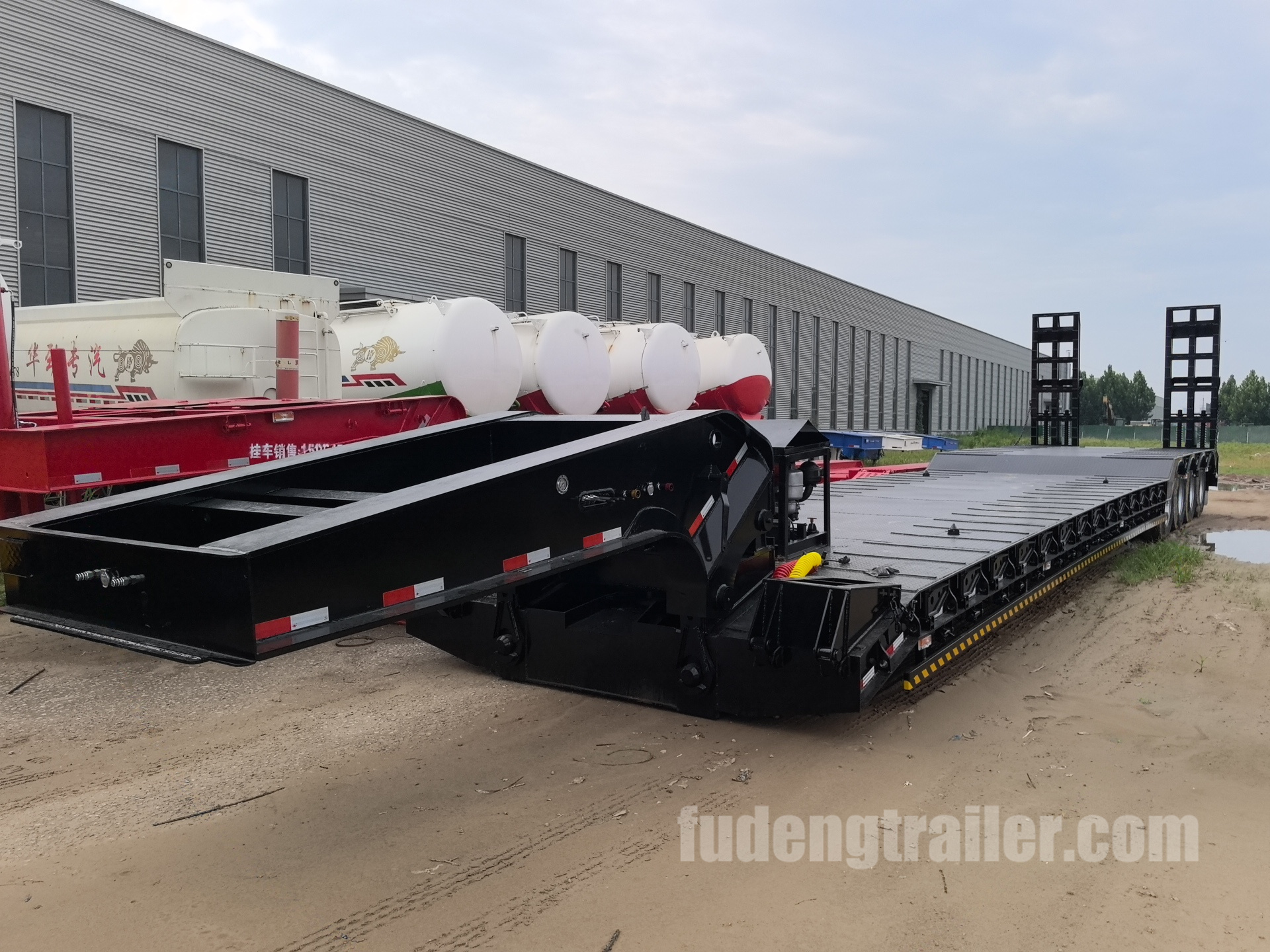

4 Axle Front loader lowbed trailer

As a core piece of equipment in the heavy transport sector, the 4-Axle Removable Gooseneck Trailer, with a rated load capacity of 80 tons, easily handles the heavy-duty transport needs of large engineering equipment, heavy steel, and other heavy-load materials.

Its main structure is constructed from high-strength steel, and the frame design, optimized through finite element analysis, significantly improves load-bearing stability while ensuring lightweight construction, preventing structural deformation under heavy loads.

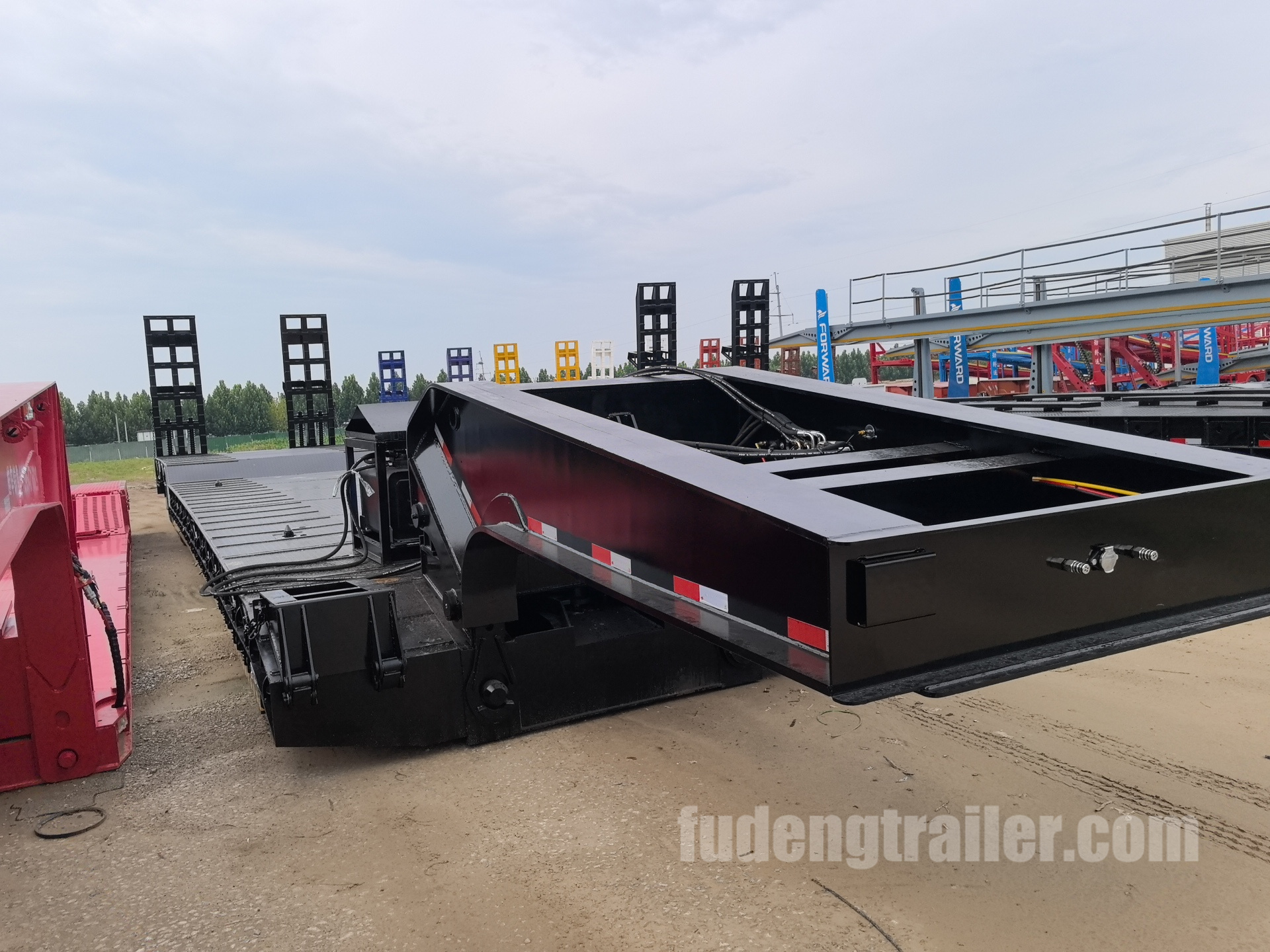

The removable gooseneck design allows for flexible separation of the trailer and tractor truck. Combined with precise weight distribution, this not only reduces the loading height of equipment but also eliminates the need for additional lifting machinery when loading and unloading non-powered equipment such as excavators and loaders, significantly improving operational efficiency.

The vehicle is equipped with a professional mechanical suspension system. Through a scientific combination of 10 sets of 90×16mm high-strength springs and shock-absorbing components, it effectively buffers road bumps during transport, reducing the impact of heavy loads on the vehicle structure and the transported cargo.

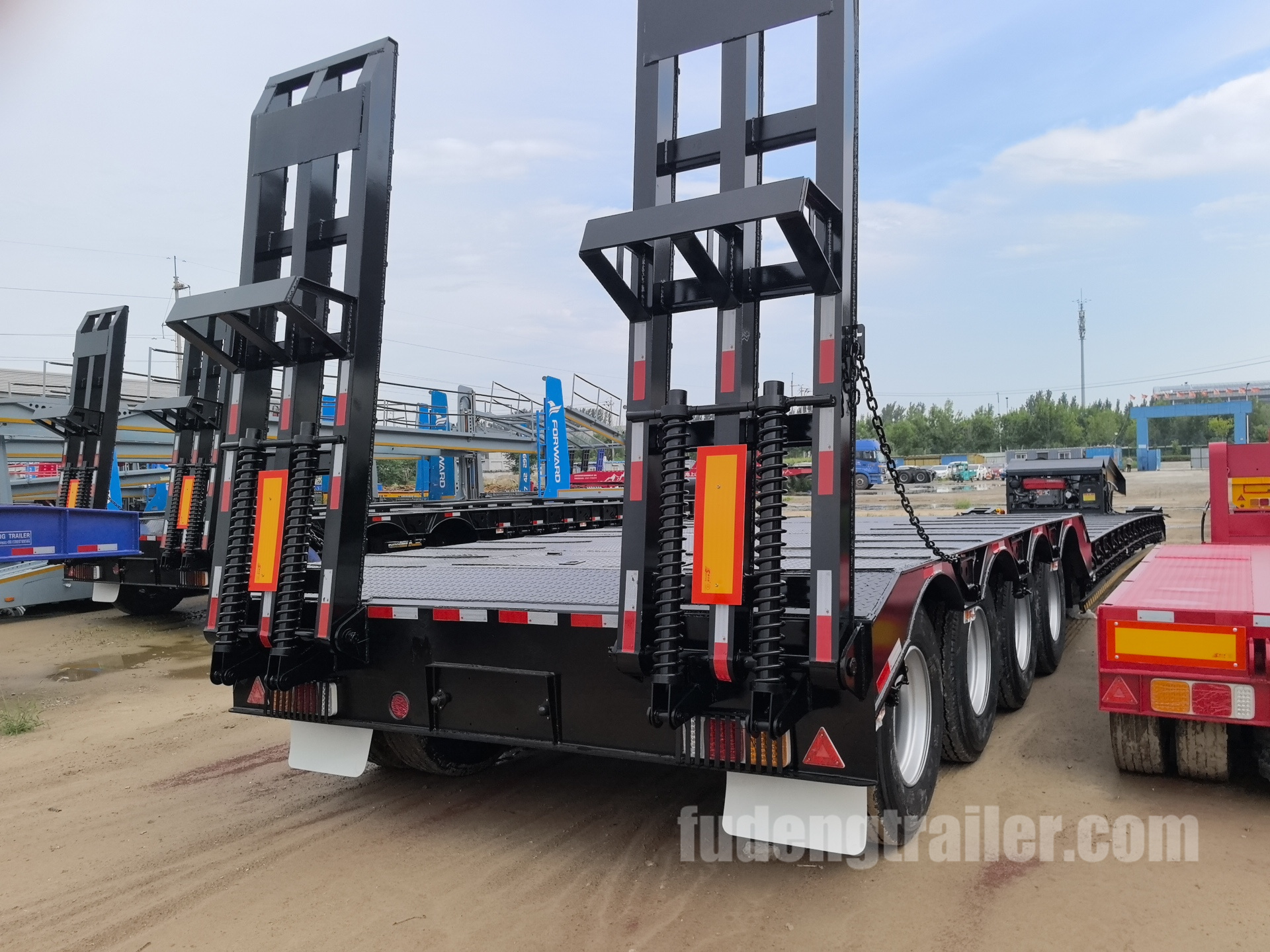

The integrated mechanical ladder at the rear is a major highlight. Rigidly connected to the trailer body, the ladder offers a gentle slope and strong load-bearing capacity when deployed. Combined with its anti-slip textured design, it ensures smooth and safe loading and unloading of heavy equipment.

Furthermore, it folds up without taking up extra space, facilitating road travel and parking. The entire mechanical structure requires no complex electrical control devices, simplifying maintenance and reducing long-term operating costs.

Specifications:

Overall dimension: 13000mm * 1750mm *1550mm

Transport: Construction machinery , equipment such as excavator, wheel loader, bulldozer etc

Max Payload: 80tons

Working Platform Length: 12m

Platform Thickness: 4mm checkered floor

Container Locks: optional

Main beam: top 20mm thickness , bottom 25mm thickness and middle plate 12mm thickness

Axles: 4 axles

Suspension: Mechanical suspension

Tire: 12 units

Kingpin: 90#/50#

Landing gear: JOST/FUWA

Brake system: WABCO

Electrical system: 24V, LED lights

                                        4 axle lowboy trailer is popular in many Countries

                                                        4 axle lowboy trailer  hot sale
