Product Description

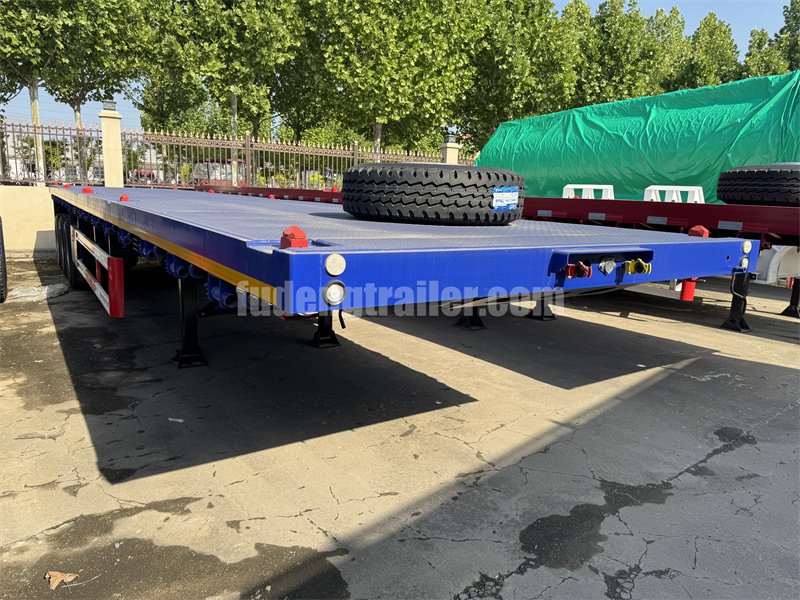

This 3-Axle Flatbed Semi Trailer is specially engineered for heavy equipment transport, oversized cargo transport, and heavy-duty logistics operations, making it a reliable solution for demanding working conditions. Constructed from high-strength steel with precision welding, the trailer offers outstanding durability and long

service life. Its 3-axle configuration ensures even load distribution, enhances stability, and significantly improves load capacity, allowing it to handle various heavy-load transport tasks with ease.

The trailer can be optionally equipped with an industrial-grade air suspension system, which can flexibly adjust the vehicle height, reduce road vibration and shock, and provide better protection for precision equipment and high-value cargo. For different market requirements, mechanical suspension is also available as an alternative option.

Designed with safety and performance in mind, this flatbed semi trailer features a heavy-duty dual-circuit air brake system with optional ABS, ensuring fast response and synchronized braking even under full-load conditions. The wear-resistant heavy-duty tires deliver excellent performance on complex road conditions, ensuring long-term reliability. The landing gear is available in both mechanical and hydraulic options, with flexible configurations and optional brands such as JOST and FUWA. In addition, the rear is equipped with reflective markings and safety protection devices, fully compliant with international road transport safety regulations, ensuring safer and more reliable oversized cargo transportation. Contact us today to get detailed specifications and competitive quotations for your heavy transport needs.

Detailed Description

The main beams and diagonal reinforcement ribs form the core load-bearing structure of the trailer — the high-strength longitudinal beams. These diagonal braces are firmly welded to the frame, significantly enhancing torsional rigidity and impact resistance. They play a critical role in heavy-duty operations, ensuring reliable support for oversized equipment while effectively preventing frame deformation and structural fatigue.

This 3-Axle flatbed semi trailer stands out with its robust load capacity and advanced safety features:

The axles adopt a heavy-duty reinforced 3-axle configuration, which evenly distributes the load across each axle and tire. This effectively prevents single-axle overloading, greatly improving overall load capacity and driving stability, making it a reliable solution for oversized cargo transportation. The axle system works together with the main beam to form a stable and high-strength load-bearing framework, ensuring structural reliability under long-term heavy-duty conditions.

The braking system utilizes a heavy-duty dual-circuit air brake system with optional ABS. Large brake drums with excellent heat dissipation, combined with a synchronized multi-axle braking design, ensure stable braking performance during downhill driving and emergency situations under heavy loads. This effectively reduces risks such as brake deviation and side slip, significantly improving overall driving safety.

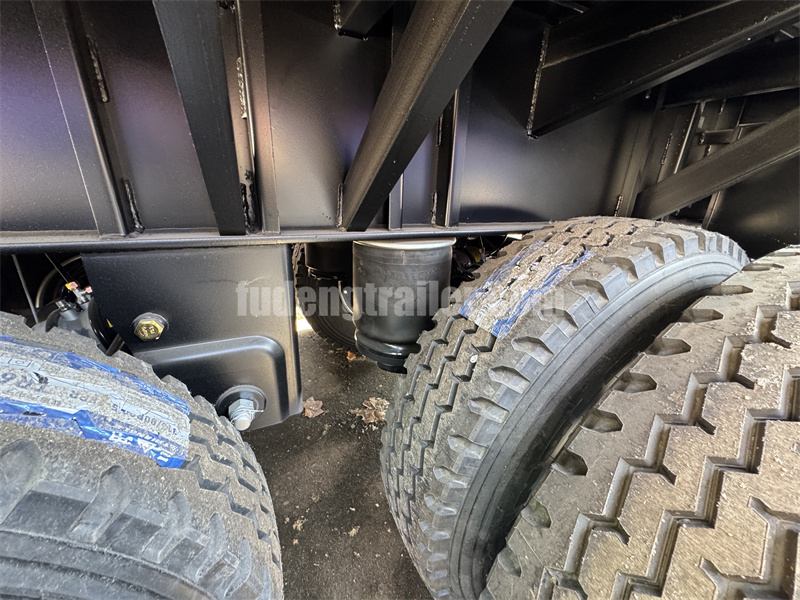

The most important cylindrical rubber component shown in the image is the key element of the air suspension system — the industrial-grade heavy-duty air spring. Specially designed for flatbed semi trailers, it features upper and lower metal end plates and secure connections to both the frame and axles. The installation quality and sealing performance directly affect system reliability and service life.

Replacing traditional leaf spring suspension, the optional air suspension system uses compressed air to provide elastic support. It can dynamically adjust stiffness according to load conditions and road conditions, while also allowing flexible chassis height adjustment. Under heavy load, it maintains stable ride height; when unloaded, it reduces vehicle height to improve efficiency and tire wear control. It effectively absorbs road vibration and enhances cargo protection, especially for fragile and high-value goods.

The rear design of this flatbed semi trailer is carefully engineered to meet regulatory compliance while enhancing safety protection:

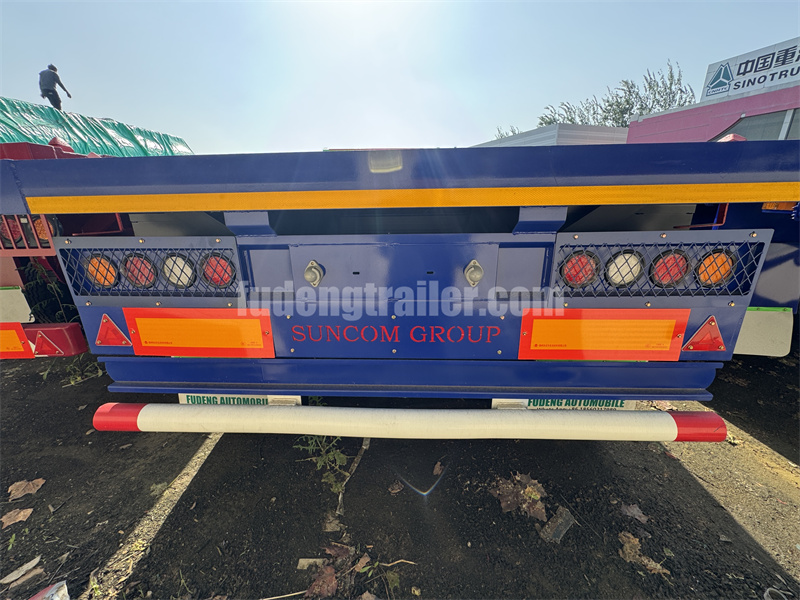

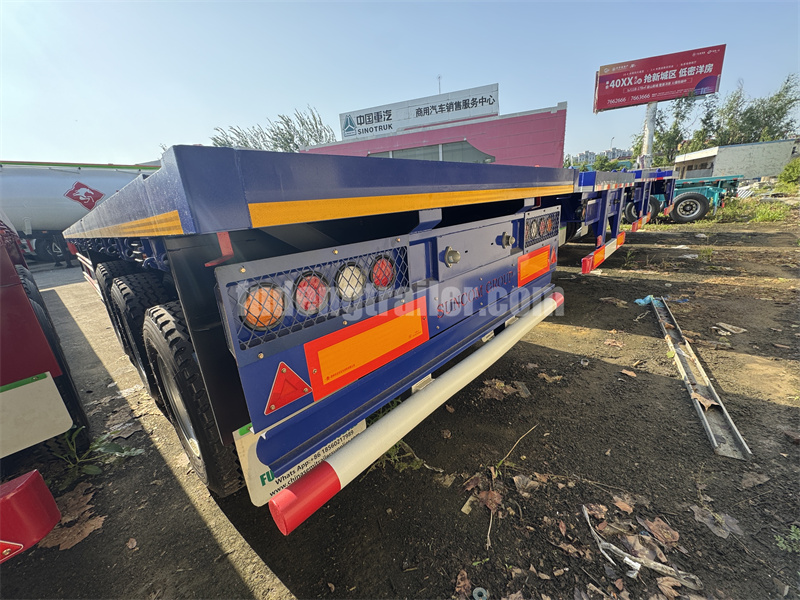

The tail lights and marker lights feature an integrated design in red, amber, and white, with external metal protective guards to prevent damage during reversing or transportation while improving nighttime visibility. The trailer is also equipped with large-area reflective markings and warning plates, fully compliant with international road transport safety requirements. These features provide strong visual warnings in low-light conditions and effectively reduce rear-end collision risks.

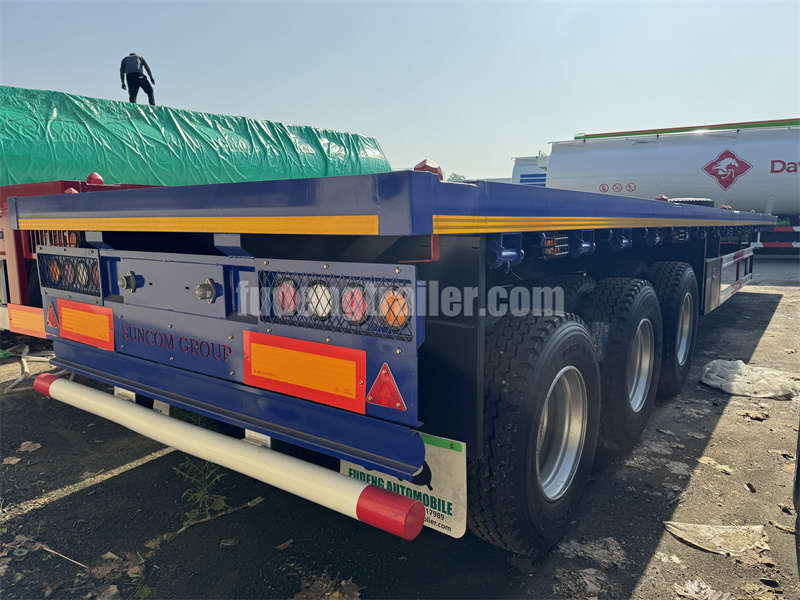

Additionally, the lower rear is fitted with a red-and-white anti-underrun protection bar, which helps prevent smaller vehicles from sliding underneath the trailer in the event of a collision, significantly improving passive safety performance.

This 3-Axle flatbed semi trailer is designed with a focus on durability and operational convenience in its tire and landing gear configurations, while also supporting customized solutions:

The tires are heavy-duty commercial-grade models, paired with high-strength wheel hubs and locking bolts. The tread features wear-resistant and impact-resistant design, capable of handling complex road conditions and long-term heavy loads, reducing wear and extending service life. Under the multi-axle configuration, the load is evenly distributed across all tires, further enhancing driving stability and safety.

The landing gear is available in both mechanical and hydraulic options, with flexible brand selection. Standard configurations are available, while optional high-quality brands such as JOST and FUWA can be provided upon request. Both systems ensure stable support during coupling, uncoupling, and parking operations, preventing tilting or instability when the trailer is not connected to a tractor unit, making them reliable for heavy transport operations.
