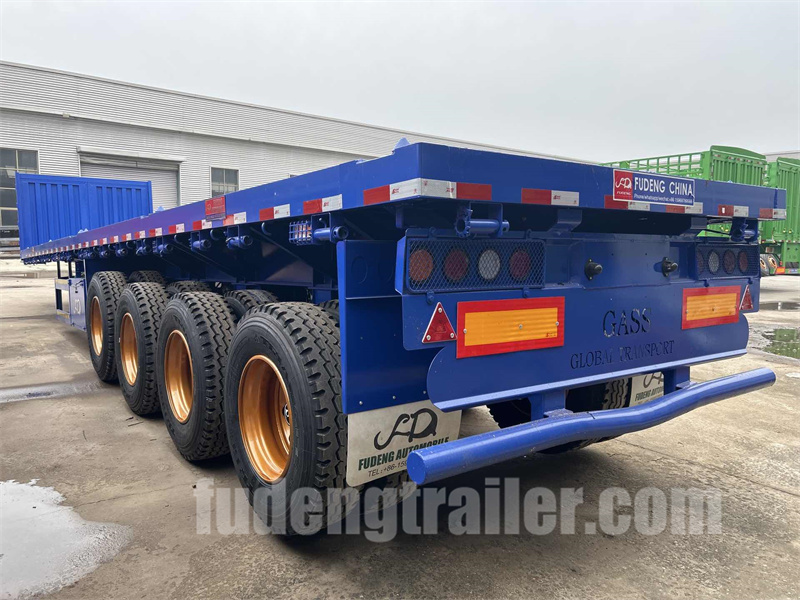

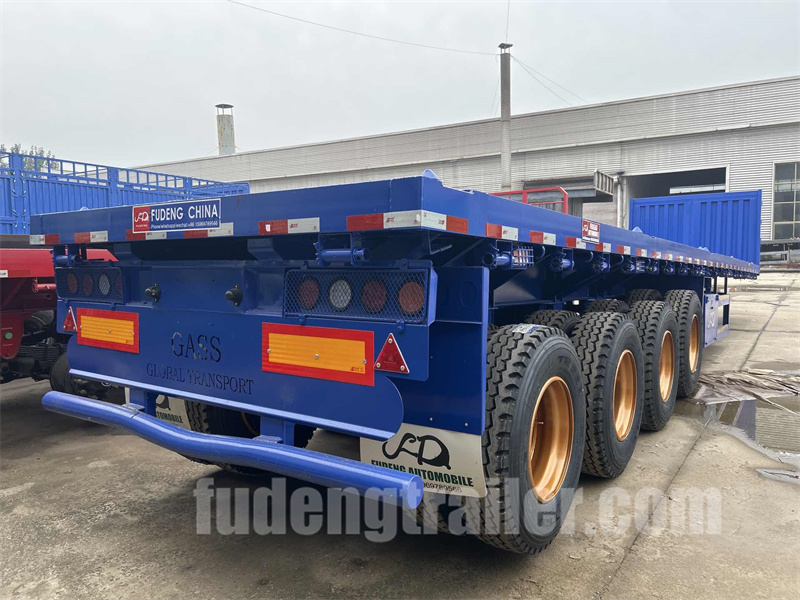

4 Axles Flatbed Trailer With Front Board

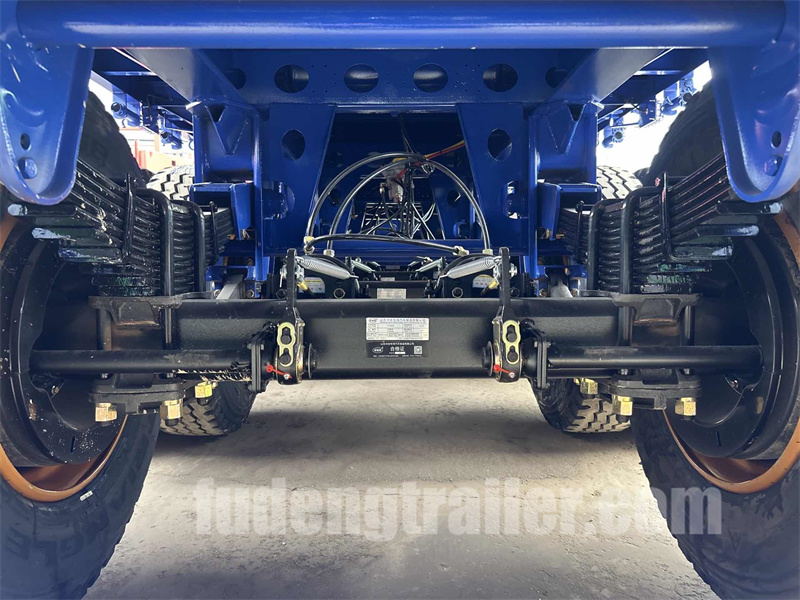

The four-axle flatbed trailer with a front board is designed to balance safety and efficiency. The trailer is equipped with heavy-duty leaf springs measuring 90 mm (W) × 16 mm (T) with 10 layers, combined with a reinforced mechanical suspension system, delivering a maximum payload capacity of up to 80 tons.

It features four 13-ton Fudeng-brand axles, known for their reliable quality and stable performance. As a well-recognized brand in the industry, Fudeng axles are manufactured with advanced processes and high-grade materials, offering excellent load-bearing capacity and outstanding fatigue resistance to ensure strong and consistent power transmission.

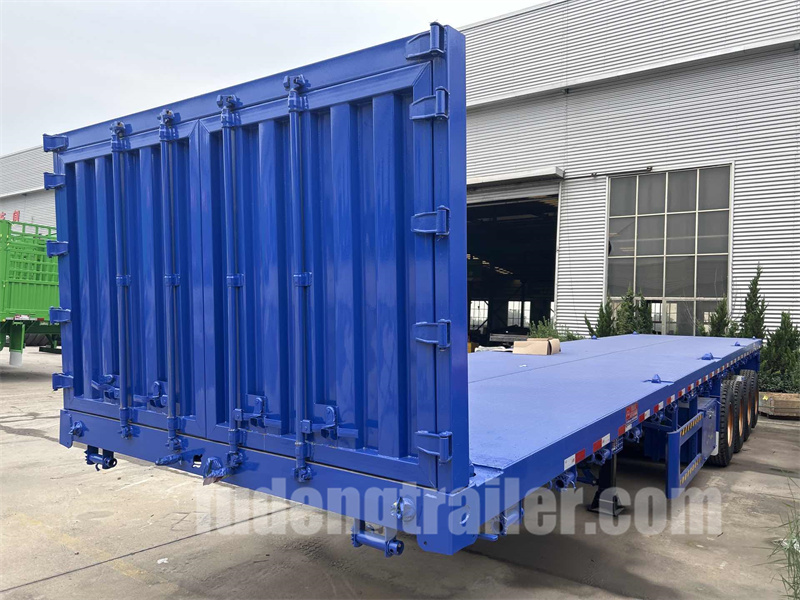

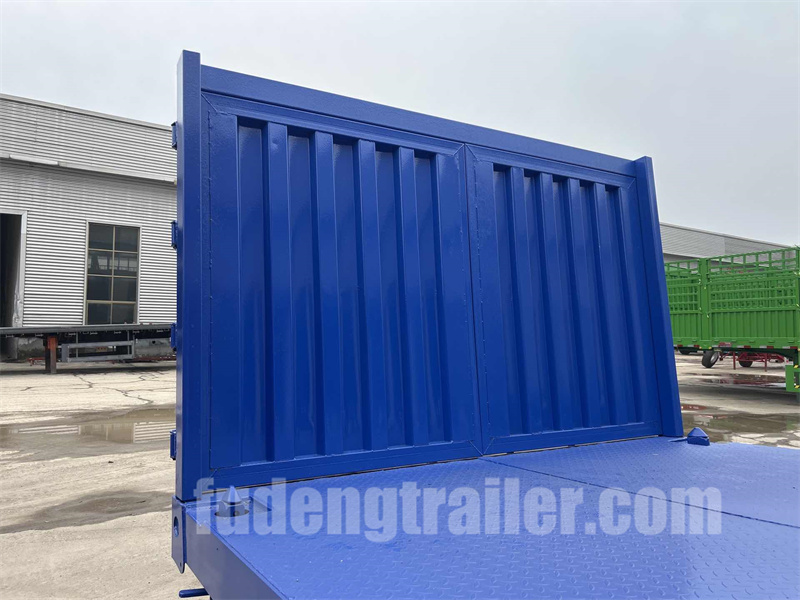

The front board is a key highlight of this flatbed trailer. During transportation, it effectively prevents cargo from sliding forward, reducing the risk of cargo damage and potential safety accidents. With a small turning radius and high maneuverability, the trailer can easily operate in various working environments. Whether for internal factory transfers, construction site transportation, or cargo handling at ports and terminals, it delivers efficient performance and reliable operation.

Combining ultra-high load capacity, stable passability, and proactive safety protection, this flatbed trailer is a dependable solution for safe and efficient transportation in heavy-duty applications such as mining, building materials, and large equipment transport.

Specifications:

Overall dimension: 13500mm * 2500mm *1600mm

Transport: ISO 20ft container or 40ft container or bulk cargo

Container Locks: 12 units

Main beam: Welded design or special design "H" beam Q345 carbon steel material

Axles: 4 axles，13T FD Brand

Frame Floor: The Thickness Is 3mm Pattern

Suspension: Mechanical / airbag suspension

Leaf Spring: 90mm(W)*16mm(T)*10 Layers

Tire: 12 units

Spare tyre carrier: 2 units

Kingpin: 90#/50#

Landing gear: JOST/FUWA

Brake system: WABCO

Electrical system: 24V, LED lights

Advantages:

1. Factory direct pricing, offering excellent value for money;

2. Fudeng has been exporting flatbed semi-trailers for over ten years, possessing mature technology and design;

3. Customizable design based on your specific needs;

4. We provide cost-effective delivery suggestions to save you on shipping costs.
