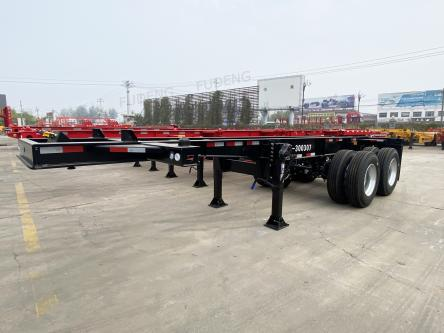

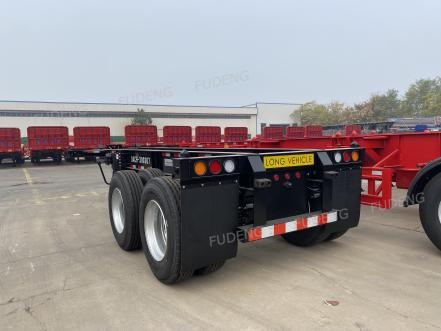

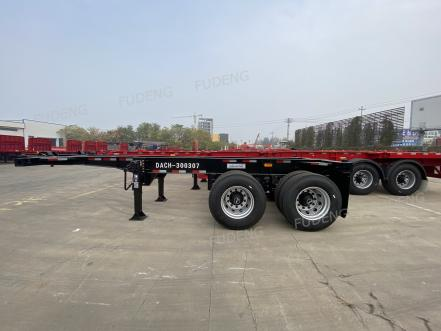

20FT Container Chassis Trailer

Container chassis trailer is also called skeletal semi trailers, skeleton container trailer, skeletal container trailer, container trailers. A skeletal trailer is a specialized open-frame chassis designed to carry ISO shipping containers of various sizes. Unlike enclosed trailers, skeleton trailers feature a minimal structure that reduces weight and enhances fuel efficiency. FUDENG Container Chassis Trailer deliver maximum payload with minimal weight, offering a robust, low-maintenance solution for the modern logistics industry.

Fudeng skeletal trailer also provide personalized services for the drivers. To benefit their work life and guard the safety,we equipped additional tool box,two spare tire racks,water tank and fuel tank. Also to benefit your business,Fudeng chassis trailer team will provide suitable assembly options to minimize your costs and replacement frequency according to your country's road conditions and the type of goods you are transporting.

Fudeng semi container chassis trailers have 2 axles 20ft skeletal semi trailer , 2 axle 40ft skeleton trailer, 3 axles 40ft container chassis, 3 axles 45 ft skeletal container trailers for sale with load capacity range from 20 tons to 50 tons.

Specifications:

Overall dimension: 12500mm * 2500mm *1600mm

Transport:  ISO 20ft container , 40ft container, 45 ft container

Container Locks: 12 units

Main beam: Welded design or special design “H” beam Q345 carbon steel material

Axles: 2 axles

Suspension: Mechanical / airbag suspension

Tire: 12 units

Spare tyre carrier: 2 units

Kingpin: 90#/50#

Landing gear: JOST/FUWA

Brake system: WABCO

Electrical system: 24V, LED lights

Advantages:

1. Dedicated to research for long durability while maintaining a lightweight frame.

2. Under the competitive prices,still using the traceable and reliable components.

3. Customized sizes and parts’ level satisfy all the ISO container and different needs.

4. Multi production lines to reduce the production and delivery time.

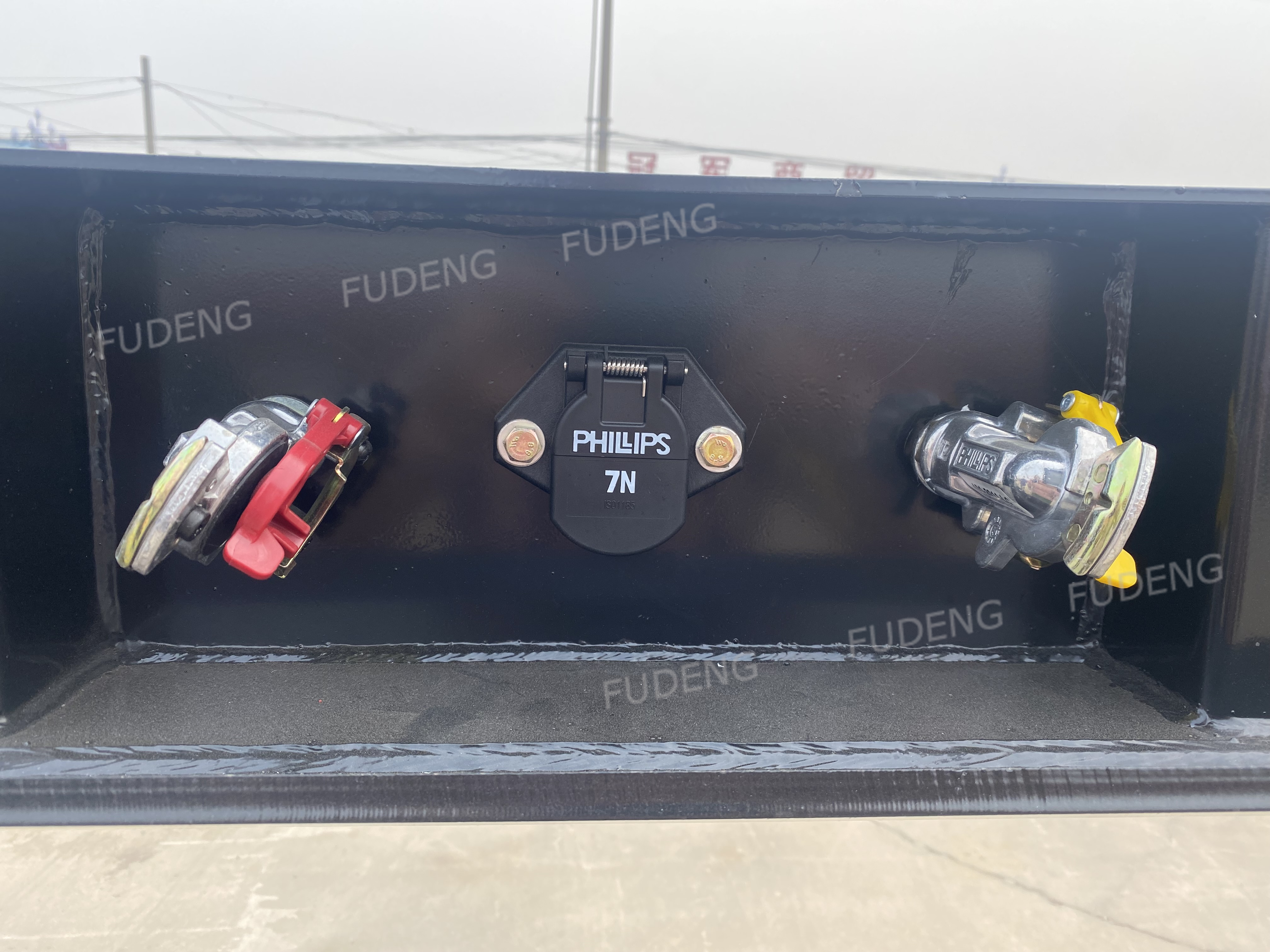

                       20ft skeletal container chassis semi trailers for sale-ABS connecto

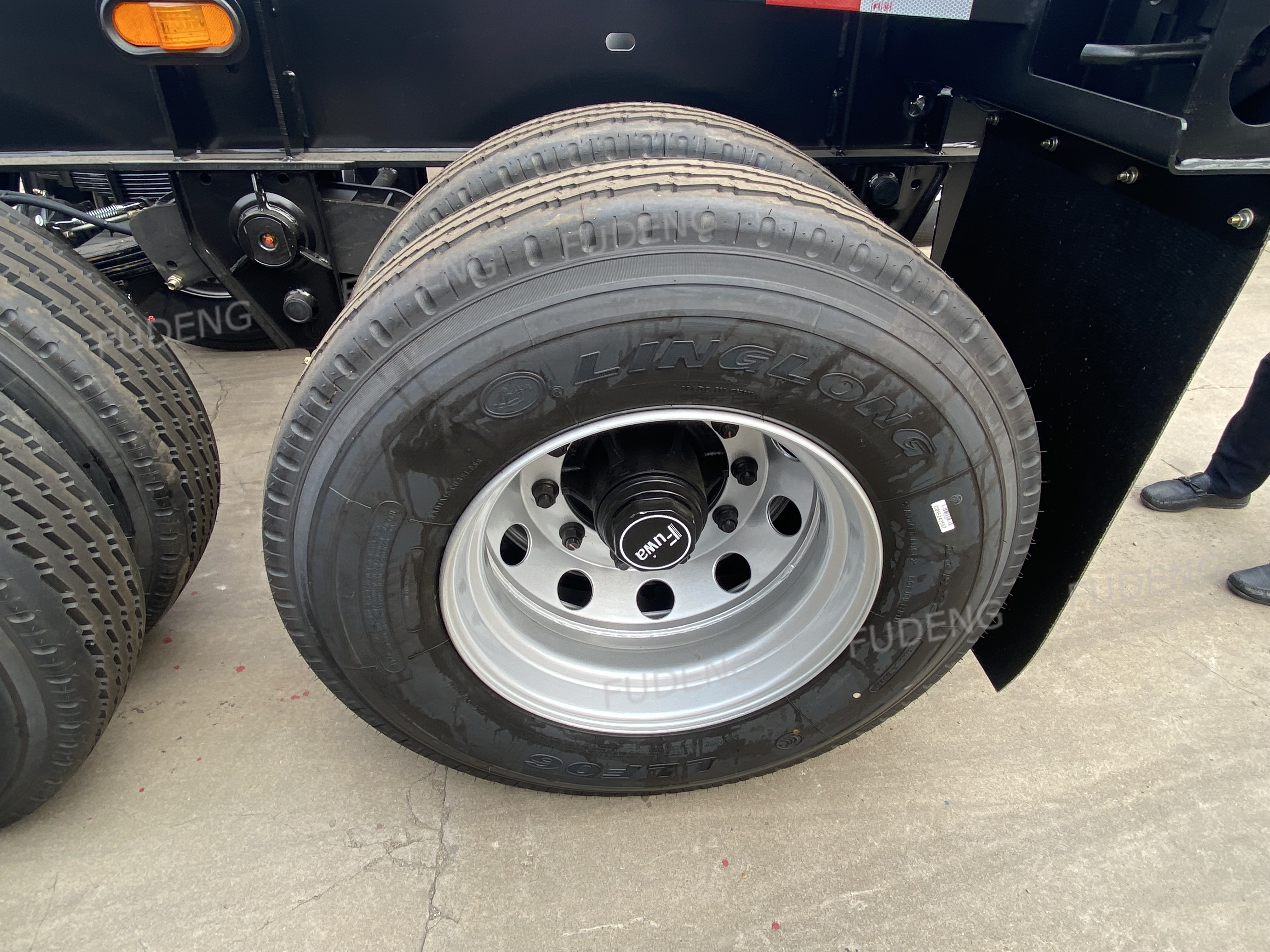

Fudeng tri axles 20 feet skeleton semi container trailer-High quality axle,tire,mechanical suspension and leaf spring.

20ft Skeleton Semi Trailer Drawing For Your Reference
