40FT Container Chassis Trailer

Container chassis trailer is also called skeletal semi trailers, skeleton container trailer, skeletal container trailer, container trailers.Skeleton trailer is a special trailer used to transport ocean containers over the road. Fudeng produce all the sizes of skeletal trailer,including 2 axles 20ft skeletal semi trailer , 2 axle 40ft skeleton trailer, 3 axles 40ft container chassis, 3 axles 45 ft skeletal container trailers,4 axles 40ft trailer which can load 40-50tons.Fudeng is committed to using excellent steels to make its products lighter while increasing their load-bearing capacity.

Fudeng skeleton trailer are characterized by the versatility & flexibility.The engineer will assess the part assembly based on your local conditions.To lower your costs, we ensure that each skeletal trailer uses a consistent material thickness, allowing our vehicles to carry sufficient cargo while minimizing wear and tear.

Specifications:

Overall dimension: 12500mm * 2500mm *1600mm

Transport:  ISO 20ft container , 40ft container, 45 ft container

Container Locks: 12 units

Main beam: Welded design or special design “H” beam Q345 carbon steel material

Axles: 4 axles

Suspension: Mechanical / airbag suspension

Tire: 12 units

Spare tyre carrier: 2 units

Kingpin: 90#/50#

Landing gear: JOST/FUWA

Brake system: WABCO

Electrical system: 24V, LED lights

Advantages:

1. Dedicated to research for long durability while maintaining a lightweight frame.

2. Under the competitive prices,still using the traceable and reliable components.

3. Customized sizes and parts’ level satisfy all the ISO container and different needs.

4. Multi production lines to reduce the production and delivery time.

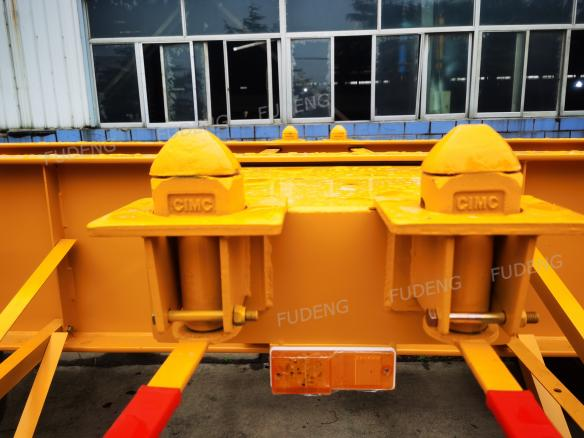

Fudeng 4 axles 40 feet skeleton semi container trailer-THT twist lock(12 units)

Fudeng 40ft container chassis trailer-Integrated iron mudguard and bracket

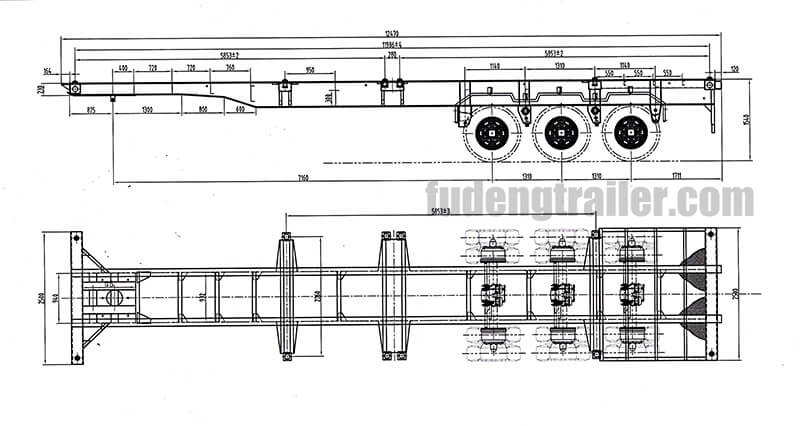

40ft Skeleton Semi Trailer Drawing For Your Reference
